- Medtronic 5433VL Patient Cable, Ventricular, Reusable, Long. Pack of 01

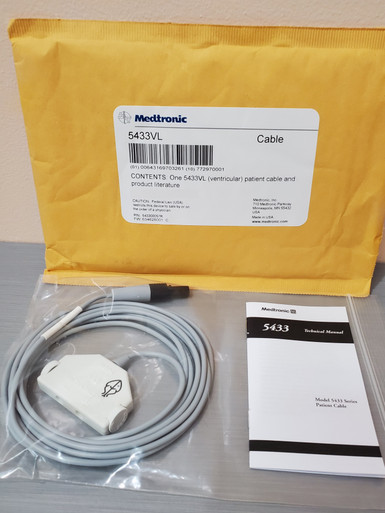

Medtronic 5433VL Patient Cable, Ventricular, Reusable, Long. Pack of 01
The Patient Cable Models 5433A and 5433V are designed to connect atrial and ventricular pacing lead systems to the
Medtronic Model Temporary Pacemaker for temporary, external pacing.
The Patient Cable Models 5433A and 5433V are safety cables (i.e., they have recessed or non-exposed pins). They are reusable
and are supplied non-sterile, but should be sterilized prior to use using steam (reliable up to 25 autoclave cycles) or ethylene oxide.
The lead connector assembly at one end of each cable accepts endocardial or myocardial pacing lead connector pins 0.38 mm to
2.41 mm (0.015 inch to 0.095 inch) in diameter. The terminal connector at the other end of each cable is designed to mate with
the output terminal on the Model 5348 pacemaker.
The two cables are identical except for color coding and markings:
The Model 5433A, for atrial use, has a blue connector block and blue band around the terminal pin block. The connector
block has a symbol denoting Atrial Use printed on one face
The Model 5433V, for ventricular use, has a white connector block and white band. The connector block has a symbol
denoting Ventricular Use printed on one face
