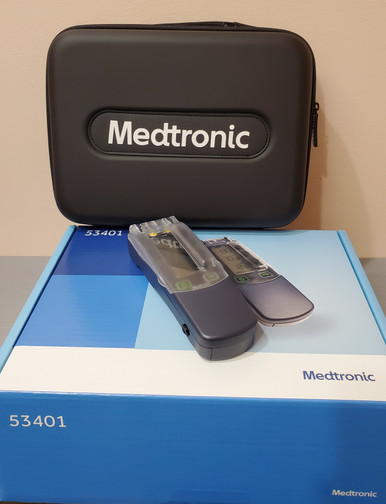

Medtronic 53401 Single-Chamber Temporary External Pacemaker. 01 Unit.
)
Product Description
Medtronic 53401 Single-Chamber Temporary External Pacemaker. 01 Unit.
Intuitively Designed, Instinctively Functional
- Easy to configure and operate
- Constant current — adjust pacing output voltage in response to changes in lead impedance*
- Leverages personnel’s device familiarity and experience
- Reliable and proven design
- Ergonomically grip with one hand § 7-year service life
*As long as the total voltage capacity of the circuit is not surpassed.
Specifications
|
Modes |
AAI, AOO, VVI, VOO |
|
Basic Pacing Rates |
30 – 200 ppm |
|
Rapid Atrial Pacing Rates |
80 – 800 ppm |
|
Output Amplitude |
0.1 – 25 mA |
|
Pulse Width |
1.5 ms |
|
Sensitivity |
0.4 – 20 mV |
|
Blanking |
200 ms +5/-30 ms — after pace 120 ms +2/-30 ms — after sense |
|
Height |
20.27 cm (7.98 in) |
|
Width |
6.68 cm (2.63 in) |
|
Depth |
4.14 cm (1.63 in) |
|
Weight |
499 g (17.6 ounces) |
|
Battery Type |
Two IEC type LR6-sized (AA-sized) 1.5 V alkaline batteries (Duracell MN1500, Eveready E91 or equivalent) |
|
Battery Life |
Up to 19 days |
|
Electrode Type |
Unipolar or bipolar |
