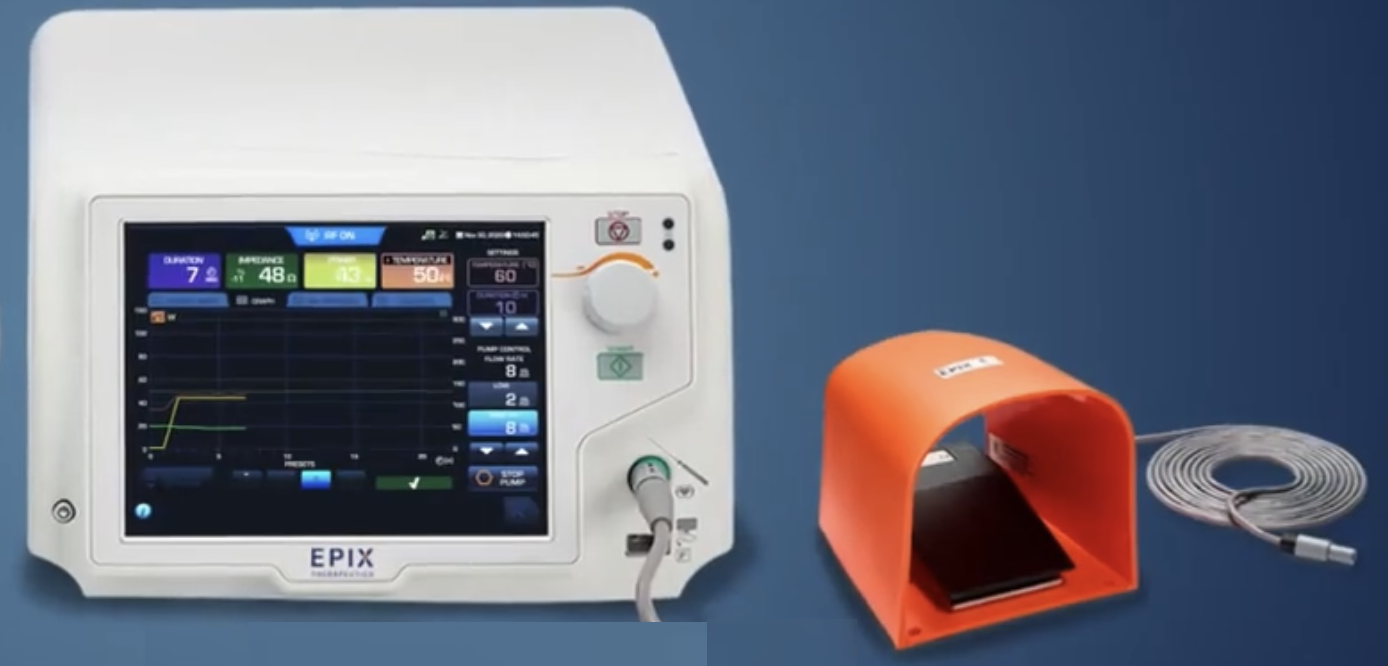

Medtronic CEDTG200 DiamondTemp™  FASTR RF Generator, Box of 01

The DiamondTemp RF generator provides RF energy and temperature monitoring functions, as well as control and communication to the DiamondTemp irrigation pump and commercially available external devices, such as cardiac stimulators, electrophysiology recording systems, and compatible EP navigational and mapping systems.

The generator operates in temperature control mode.

The desired catheter tip-to-tissue temperature is selected by the user.

Thermocouples in the catheter tip provide temperature feedback and the generator automatically adjusts the power output to maintain the desired tip-to-tissue temperature.

The generator has a touch-screen display, control buttons, and a control knob for modifying and controlling ablation parameters during the procedure. Ablation parameters such as temperature, power, impedance, duration, and irrigation flow rate are displayed on the front panel and can me recorded and saved by the generator in a format that can be downloaded to a computer or a USB flash drive.

A footswitch is also included with the generator and may be used as an option to start or stop RF energy delivery.
