Medtronic SB6JL40 Sherpa NX Balanced™ JL4.0 Guiding Catheter, 6Fr, 0.070" X 100cm Length, Left Coronary Curve, Box of 01

OVERVIEW

Consistent, Durable Performance

Let Sherpa NX Balanced™ catheters be your guide. Sherpa NX Balanced™ coronary guide catheters offer the flexibility, control, and support to guide you through challenging percutaneous coronary intervention (PCI), and feature:

• A variety of curve shapes
• Support for transradial and femoral approach

Sherpa NX Balanced™ Guide Catheters Offer:

• Soft tip and distal sleeve for manipulation
• Advanced HDPE liner for smooth, low-friction device passage
• Supportive secondary curve for increased backup support and enhanced curve retention
• Support for radial and femoral approaches

PRODUCT DETAILS

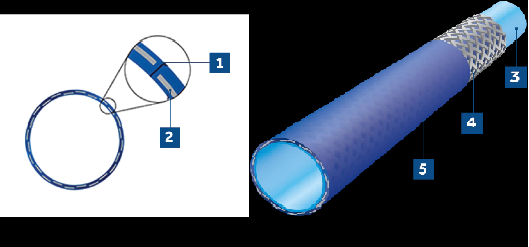

Full-Wall technology is a shaft construction process that optimises the balance between a large lumen and robust performance — offering excellent torque resistance and curve retention. The encapsulated flat wire braid enables thinner, robust walls without compromising support or retention.

1. More polymer
2. Encapsulated braid wire
3. Inner jacket
4. Flat braid wire
5. Outer jacket
